Description

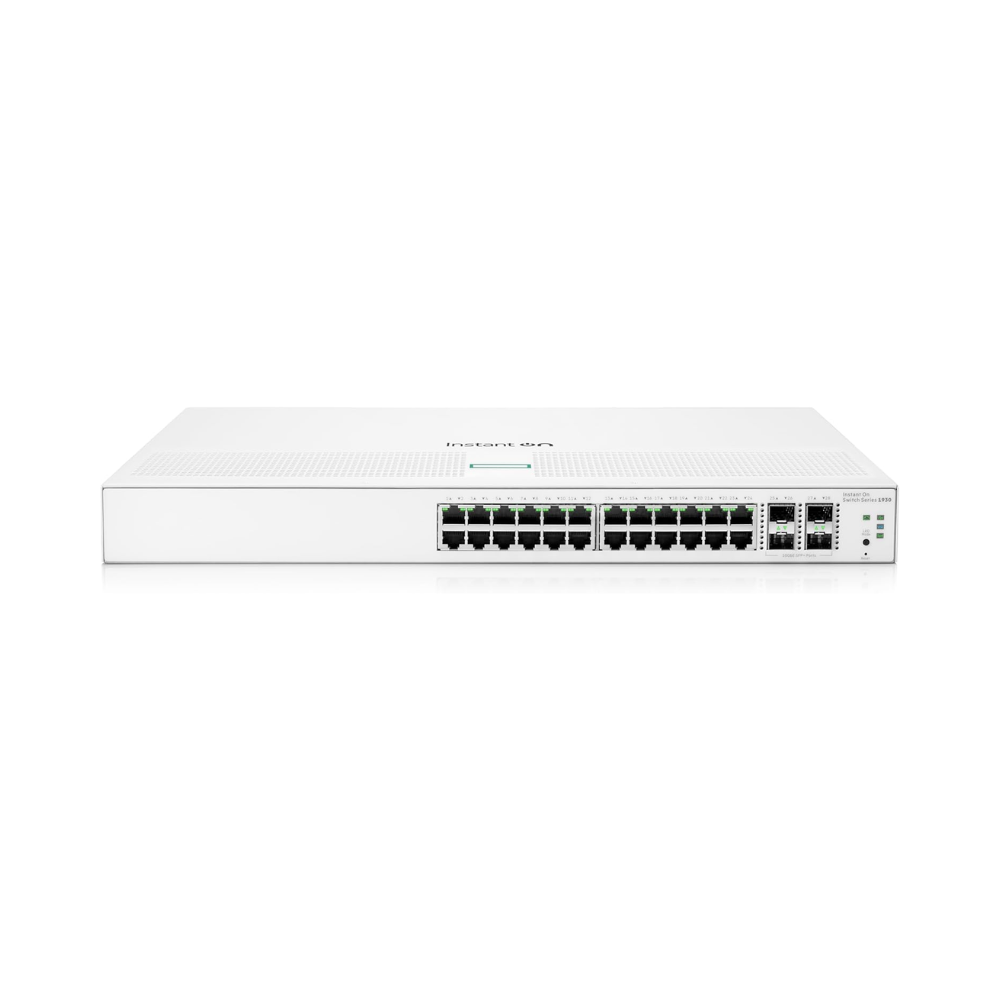

The Aruba Instant On 1930 24G PoE 193W (JL682A) is the "sweet spot" solution for small to medium-sized businesses that need a balance of power and port density. With 24 Gigabit ports and a 193W PoE budget, it is perfectly sized to support a mix of VoIP phones, Wi-Fi access points, and security cameras without the footprint of a full 48-port chassis.
Equipped with four 10G SFP+ slots, this switch ensures your network remains fast and responsive even during high-traffic periods. Whether you manage it via the Aruba Instant On mobile app or the local web interface, the JL682A offers enterprise-grade security and Layer 2+ switching capabilities in a user-friendly, reliable package.
Key Specification Table
| Feature | Specification |
| Model Number | JL682A (Aruba Instant On 1930 24G 4SFP/SFP+) |
| Port Configuration | 24 x 10/100/1000 RJ-45 Ports |
| Uplink Ports | 4 x SFP+ 1/10GbE Slots |
| PoE Capability | 193W Class 4 PoE (IEEE 802.3at) |
| Switching Capacity | 128 Gbps |
| Throughput | 95.23 Mpps |
| Management | Cloud-managed (App/Web) or Local Web GUI |
| Form Factor | 1U Rack-mount |
| Dimensions | 44.25 x 26.47 x 4.39 cm |
Key Features & Bullet Points
-
Optimal PoE Delivery: Features a 193W PoE budget to power up to 24 devices, making it ideal for standard office deployments and retail environments.
-
Ultra-Fast 10G Uplinks: Four dedicated 10GbE SFP+ fiber ports provide high-speed connections to your core network, preventing data congestion.
-
Intuitive Cloud Management: Setup, monitor, and manage your network from anywhere with the free Aruba Instant On mobile app—no hidden fees.
-
Advanced Security: Includes IEEE 802.1X, VLANs, and Automatic Denial-of-Service (DoS) protection to keep your business data safe from threats.
-
Energy Efficient: Uses Energy Efficient Ethernet (EEE) to lower power consumption during low-traffic periods, reducing your utility costs.
-
Layer 2+ Performance: Supports Static Routing, allowing for efficient traffic handling within your network without overloading your firewall.
-
Enterprise Reliability: Backed by Aruba's Limited Lifetime Warranty and 24/7 phone/chat support for the first 90 days.
