Description

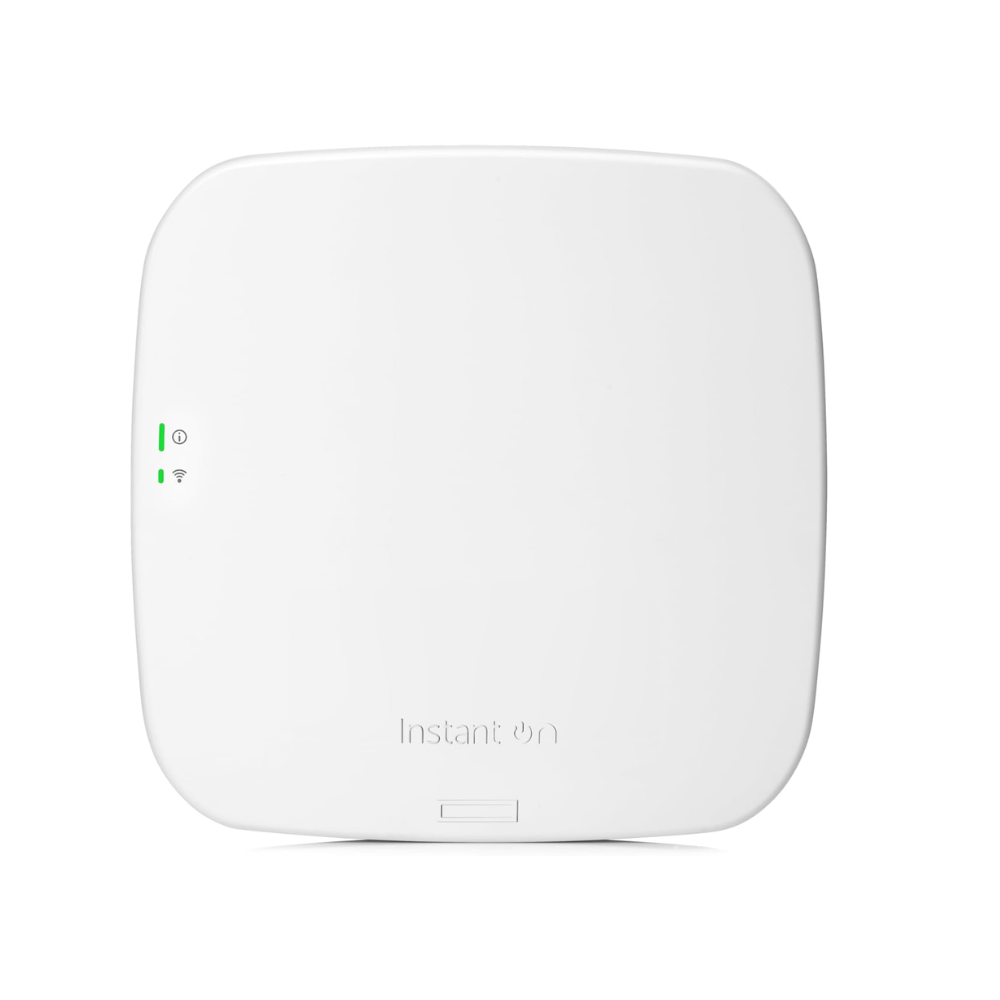

The Aruba Instant On AP12 (R3J23A) is a high-performance Wi-Fi 5 access point designed specifically for medium-density small business environments. Whether you're running a boutique hotel, a medical office, or a busy café, the AP12 provides a "no-IT-required" solution that balances enterprise-grade reliability with extreme simplicity.
The R3J23A bundle is specifically designed for convenience, including the DC power adapter and North American cord, making it ready for immediate deployment where PoE (Power over Ethernet) might not be available. With its 3x3 MU-MIMO technology, it handles more simultaneous devices and higher bandwidth demands than entry-level units, ensuring your customers and staff stay connected without lag.
Key Features & Specifications
| Feature | Specification |
| Model Number | R3J23A (Includes AP + Power Adapter Bundle) |
| Wi-Fi Standard | 802.11ac Wave 2 (Wi-Fi 5) |
| MIMO Technology | 3x3:3 MU-MIMO (3 spatial streams) |
| Max Data Rate | 1,600 Mbps (1,300 Mbps on 5GHz / 300 Mbps on 2.4GHz) |
| Recommended Capacity | Up to 75 active devices |
| Ethernet Port | 1 x Uplink Gigabit Ethernet (10/100/1000) with PoE-in support |
| Power Options | 802.3af PoE (Class 3) or Included 12V DC Adapter |
| Security | WPA2, WPA3, Enhanced Open (OWE) |
| Mounting | Includes ceiling rail and solid surface (wall/ceiling) clips |
| IoT Ready | Built-in Bluetooth Low Energy (BLE) radio |
Technical Bullet Points
-
Smart Mesh Technology: Easily extend your Wi-Fi coverage into hard-to-wire areas without the need for additional Ethernet cables.
-
Dual-Band Performance: Concurrent 2.4GHz and 5GHz operation ensures older legacy devices and modern high-speed hardware both run optimally.
-
App-Based Management: Setup, monitor, and manage your entire network via the free Aruba Instant On mobile app or the cloud-based web portal.
-
Integrated Security: Built-in security gateway and firewall protect your business traffic from external threats without needing extra hardware.
-
Medical Grade Certification: Meets EN 60601-1-1 and EN 60601-1-2 standards, making it safe and compliant for deployment in healthcare and medical clinics.
-
Application Visibility: Get full insights into which apps are being used on your network and easily block specific categories or sites to preserve bandwidth.
