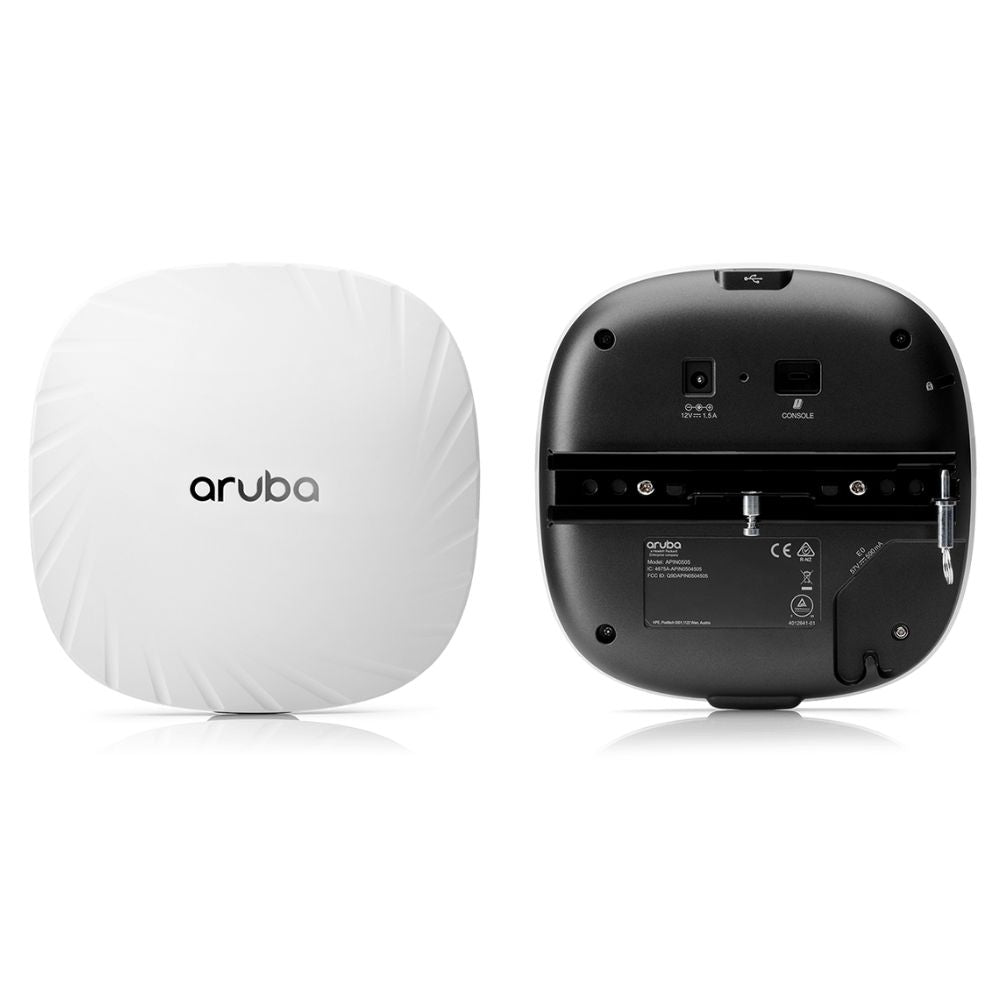

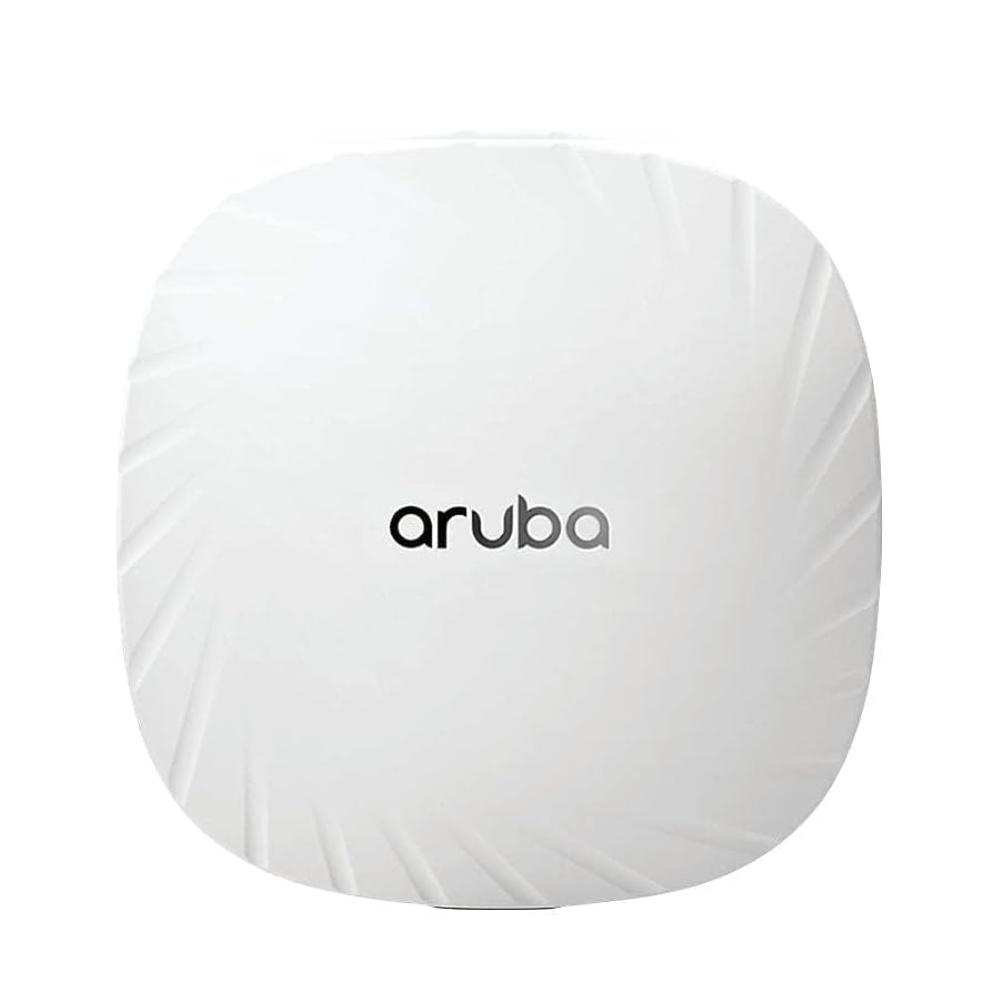

Aruba AP-505 | Wi-Fi 6 1.77Gbps High-Performance Enterprise Access Point

The Aruba AP-505 is a high-performance, cost-effective Wi-Fi 6 (802.11ax) access point designed for medium-density environments like schools, retail stores, and branch offices. By leveraging the latest Wi-Fi standards, the AP-505 eliminates "sticky client" issues and boosts network efficiency through OFDMA and MU-MIMO technologies. It is built to handle the increasing volume of mobile and IoT devices while maintaining low power consumption and robust security via WPA3.

Key Specification Highlights

• Ultra-Fast Wi-Fi 6: Delivers a combined peak data rate of 1.77 Gbps (1.2 Gbps on 5GHz and 574 Mbps on 2.4GHz).

• Dual-Band Efficiency: Supports both 2.4GHz and 5GHz bands to ensure backward compatibility with older devices.

• Advanced IoT Support: Integrated Bluetooth 5 and Zigbee radios for easy deployment of asset tracking, wayfinding, and IoT sensors.

• Smart Power Management: Features Aruba Intelligent Power Monitoring (IPM) to operate on existing PoE switches even when power budgets are tight.

• WPA3 & Enhanced Open: Provides top-tier encryption and guest access security right out of the box.

• Flexible Management: Can be deployed in controller-less (Instant) mode or managed via Aruba Central (cloud) or a physical controller.

Technical Specifications Table
