Description

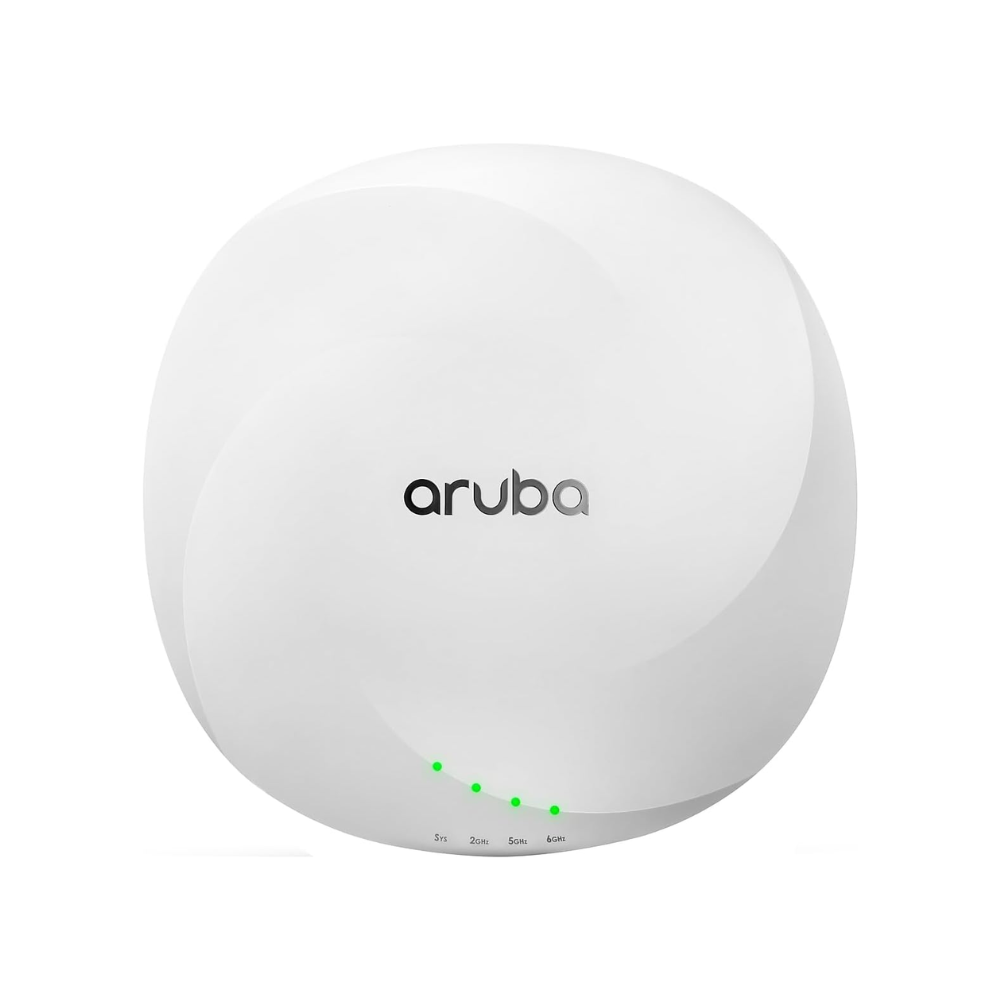

The HP Aruba AP-655 is a flagship Wi-Fi 6E campus access point designed for ultra-high-density environments and mission-critical applications. By unlocking the 6GHz band, it nearly triples the available wireless capacity, providing the interference-free spectrum needed for bandwidth-heavy technologies like 8K video streaming, AR/VR, and massive IoT deployments.
Equipped with Aruba’s patented Ultra Tri-Band (UTB) filtering, the AP-655 eliminates interference between the 5GHz and 6GHz bands, allowing them to operate concurrently at peak performance. With dual 5Gbps Smart Rate ports, it ensures "hitless failover" for both data and power, guaranteeing your network stays online even if a cable or switch port fails.
Key Specification Table
| Feature | Specification |
| Model | Aruba AP-655 (Internal Antennas) |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Radios | Tri-Radio (2.4GHz, 5GHz, 6GHz concurrent) |
| Max Aggregate Rate | 7.8 Gbps (4.8Gbps @ 6GHz + 2.4Gbps @ 5GHz + 574Mbps @ 2.4GHz) |
| MIMO Configuration | 4x4:4 MU-MIMO (Four spatial streams per band) |
| Wired Ports | 2 x HPE Smart Rate (100M/1G/2.5G/5G) RJ-45 |
| Power Support | PoE Class 6 (802.3bt) or 48V DC |
| Bluetooth / Zigbee | Integrated BLE 5.0 and 802.15.4 radio for IoT |
| Special Features | Ultra Tri-Band Filtering, Built-in GPS, ClientMatch |
Product Highlights
-
Massive 7.8 Gbps Throughput: Delivers extreme multi-gigabit speeds to handle the most demanding enterprise traffic without bottlenecks.
-
Wi-Fi 6E Innovation: Utilizes the 6GHz band to provide up to seven 160MHz channels, offering low-latency performance for next-gen applications.
-
Ultra Tri-Band (UTB) Filtering: A unique Aruba technology that prevents signal bleed-over between 5GHz and 6GHz, maximizing usable spectrum.
-
High Availability & Resiliency: Dual 5Gbps Ethernet ports provide hitless failover for power and data, ensuring business continuity.
-
Precise Locationing: Built-in GPS receivers and Fine Timing Measurement (FTM) support provide high-accuracy indoor location services.
-
IoT Ready: Integrated Bluetooth and Zigbee radios simplify the management of asset tracking, security sensors, and other IoT devices.
-
Advanced Security: Features WPA3 and Enhanced Open for high-level encryption, alongside a Trusted Platform Module (TPM) for secure credential storage.
