C9200L-24T-4X-E Specification |
|
|
Downlinks total 10/100/1000 or PoE+ copper ports |
24 ports data |
|
Uplink configuration |
4x 10G fixed uplinks |
|
Default primary AC power supply |
PWR-C5-125WAC |
|
Fans |
Fixed redundant |
|
Software |
Network Essentials |
|
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
|
Weight |
9.59 pounds |
|
Virtual Networks |
1 |
|
Stacking bandwidth |
80 Gbps |
|
Total number of MAC addresses |
16,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
11,000 (8,000 direct routes and 3,000 indirect routes) |
|
IPv4 routing entries |
3,000 |
|
IPv6 routing entries |
1,500 |
|
Multicast routing scale |
1,000 |
|
QoS scale entries |
1,000 |
|
ACL scale entries |
1,500 |
|
Packet buffer per SKU |
6 MB buffers for 24- or 48-port Gigabit Ethernet models |
|
Flexible NetFlow (FNF) entries |
16,000 flows on 24- and 48-port Gigabit Ethernet models |
|
DRAM |
2 GB |
|
Flash |
4 GB |
|
VLAN IDs |
1024 |
|
Total Switched Virtual Interfaces (SVIs) |
512 |
|
Jumbo frames |
9198 bytes |
|
Wireless bandwidth per switch |
N/A |
|
Switching capacity |
128 Gbps |
|
Forwarding rate |
190.4 Mpps |
|
Mean time between failures (hours) |
525,990 |
- Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- Flexible downlink options with data or PoE+
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- Advanced network monitoring using Full Flexible NetFlow
- Cisco Software-Defined Access (SD-Access)
- Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
- Network assurance and improved resolution time through Cisco DNA Center
- Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
- Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
- ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

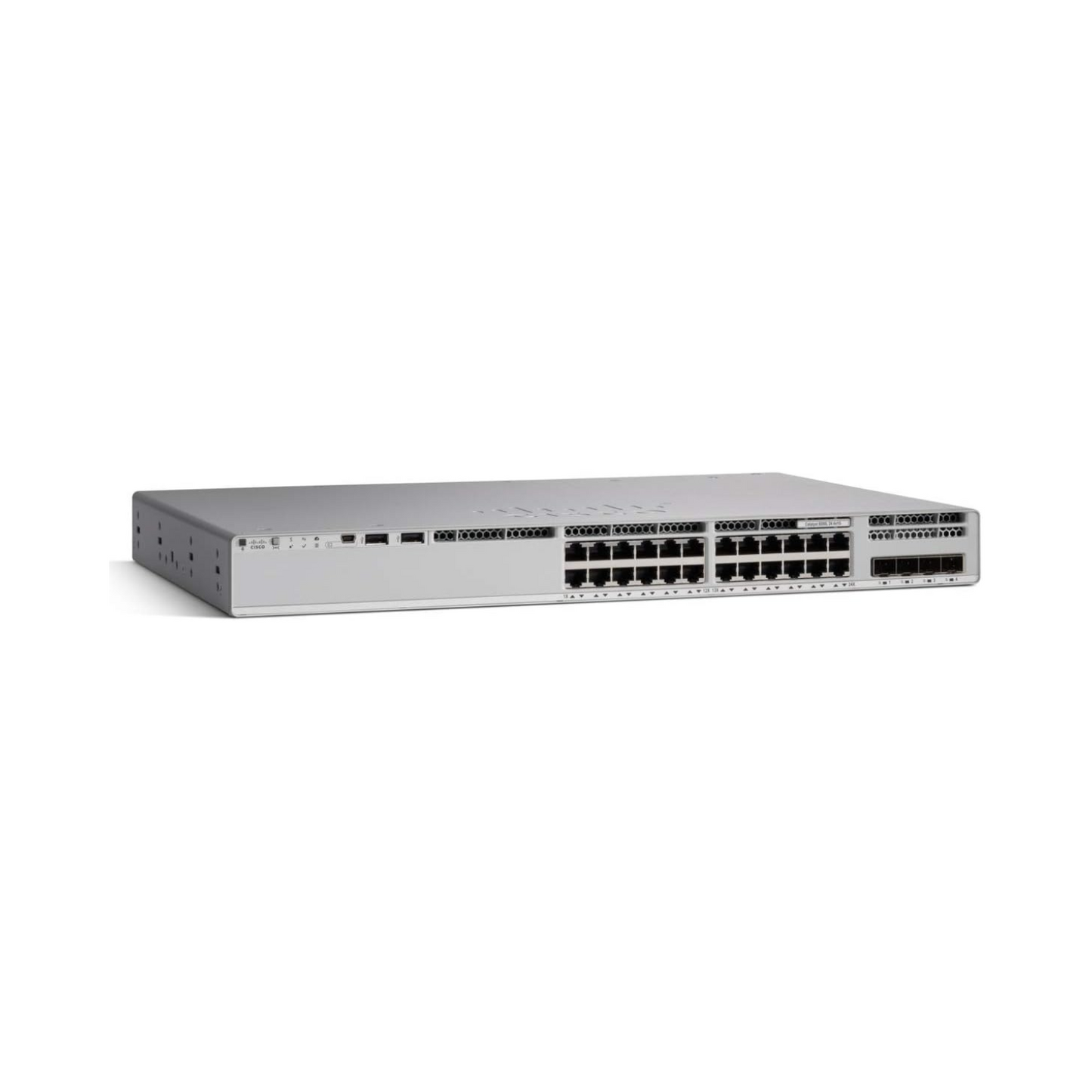

The Cisco Catalyst 9200 Series Switches are the high-performance, modular switches. These are made for deployment in enterprise campus networks. There is a particular model with 24 10/100/1000BASE-T ports along with 4 10 Gigabit Ethernet SFP+ uplink ports: C9200L-24T-4X-E. It delivers high speed to connect with a plethora of devices. MACsec delivers advanced security. It can support a broad range of network protocols and services. With its rugged hardware and software, the Catalyst 9200 is best suited for that organization which requires scalable, secure, and reliable network infrastructure.
