Description

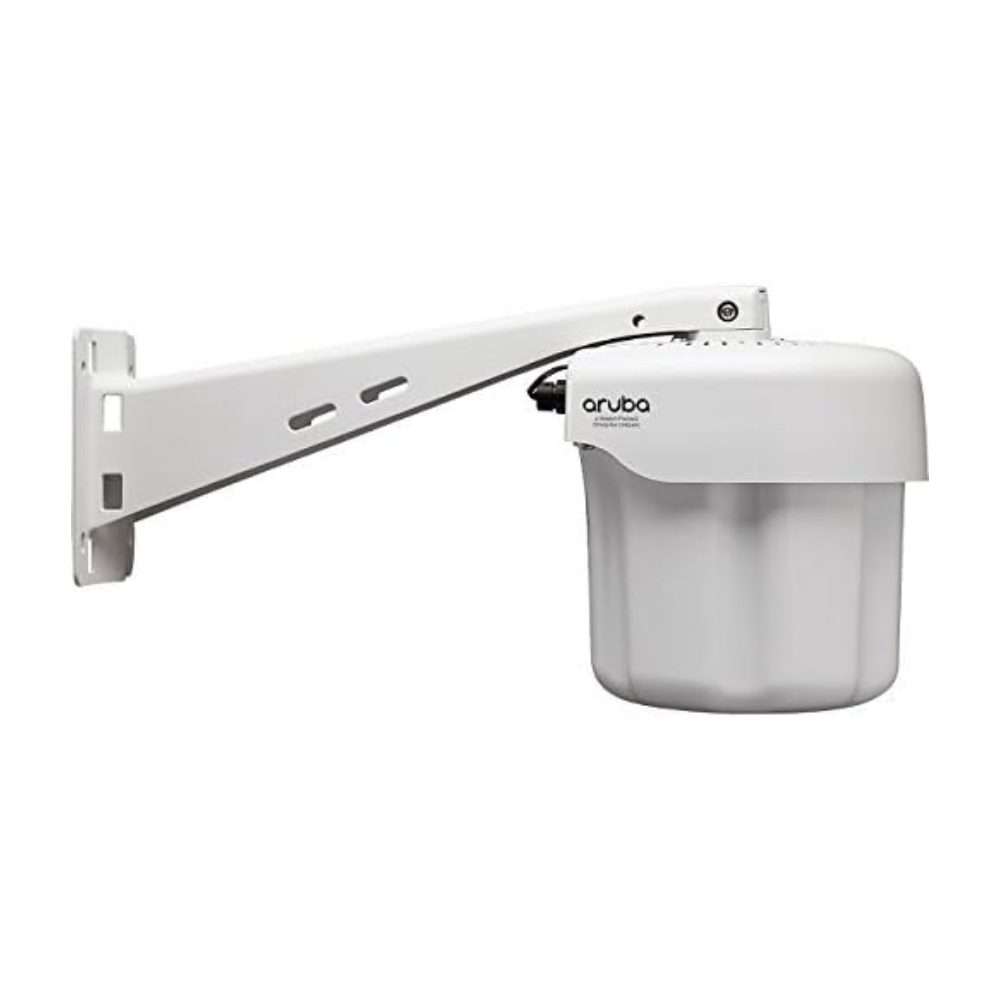

The Aruba Instant On IAP-275-US is an environmentally hardened, high-performance outdoor access point designed to deliver enterprise-grade Wi-Fi in the most challenging conditions. Engineered for durability and speed, it features 802.11ac technology with a combined data rate of up to 1.9 Gbps (1.3 Gbps on 5GHz and 600 Mbps on 2.4GHz).
Its sleek, inconspicuous design allows it to blend into outdoor environments like campus quads, resort pools, or industrial yards. Built to survive the elements, the IAP-275 is IP66/67 rated, meaning it is fully sealed against dust and can withstand powerful water jets or temporary submersion. With Aruba Instant technology, setup is effortless—no external controller is required, as one AP can automatically distribute configurations to others in the cluster.
Key Specification Table
| Feature | Specification |
| Model Number | IAP-275-US (Restricted Regulatory Domain: US) |
| Wi-Fi Standard | 802.11ac (Wi-Fi 5) |
| MIMO/Spatial Streams | 3x3:3 MIMO |
| Max Data Rate | 1.3 Gbps (5GHz) + 600 Mbps (2.4GHz) |
| Environmental Rating | IP66 and IP67 (Weatherproof/Dustproof) |
| Operating Temp | -40°C to +65°C (-40°F to +150°F) |
| Ethernet Ports | 2 x 10/100/1000BASE-T (RJ-45) |
| Antennas | Six Integrated Omni-directional (5 dBi gain) |
| Power Options | 802.3at PoE+ or Direct AC (100-240V) |
| Wind Survivability | Up to 165 mph |
Key Features & Bullet Points
-
Gigabit Outdoor Performance: Delivers blistering speeds up to 1.3 Gbps on the 5GHz band, ensuring high-density outdoor areas stay connected without lag.
-
Industrial-Grade Ruggedness: Fully sealed IP66/67 chassis protects internal components from extreme heat, freezing cold, persistent moisture, and airborne pollutants.
-
Controller-Less Simplicity: Features Aruba Instant Virtual Controller technology, allowing you to manage a cluster of APs as a single entity without extra hardware or fees.
-
Smart Antenna Technology: Includes six integrated omni-directional antennas optimized for horizontal mounting, providing consistent 360-degree coverage.
-
Advanced Cellular Coexistence (ACC): Minimizes interference from 3G/4G/LTE cellular networks and distributed antenna systems to maximize Wi-Fi efficiency.
-
Flexible Powering: Can be powered via Standard PoE+ (802.3at) for easy installation or connected directly to an AC power source for locations without Ethernet-based power.
-
Zero-Touch Provisioning: Simplified deployment that allows the AP to be configured over-the-air, getting your outdoor network live in under five minutes.
